Description

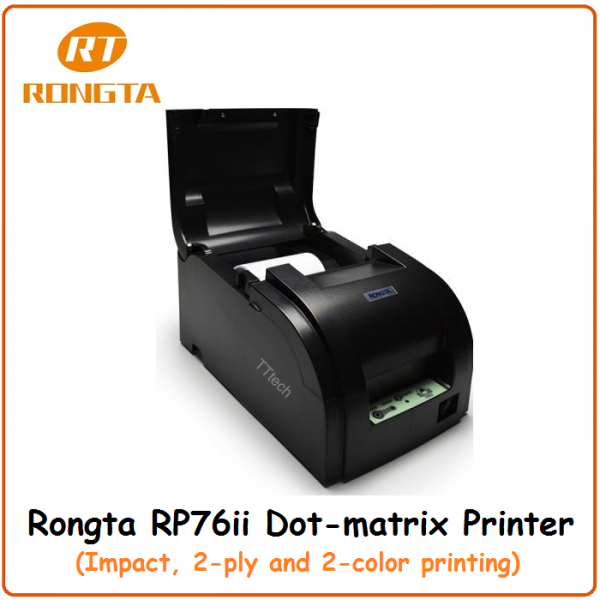

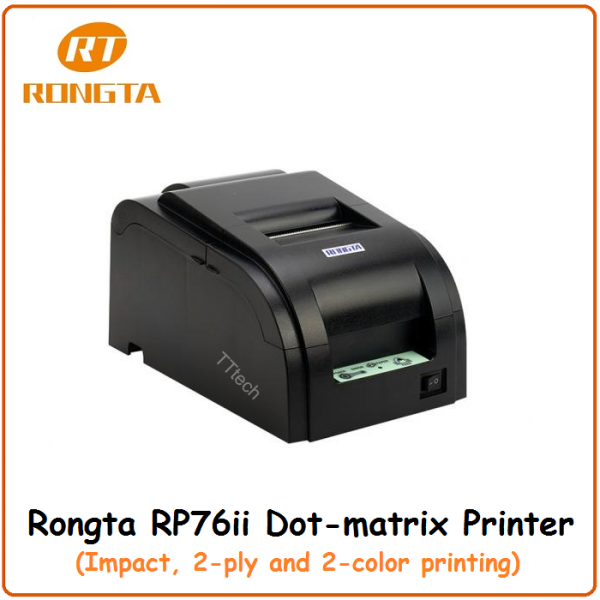

The Rongta RP-76ii is an Impact Dot-Matrix Receipt Printer with 203 dpi and 90mm per sec printing speed. This easy to use receipt printer with exquisite design comes with auto cutter, and supports double printing. It comes with multiple interfaces; USB+Serial+Ethernet.
It can be used in various applications like KOT Printing, Receipt, Bill, Kitchen printing, Ticketing etc …
TECHNICAL SPECIFICATIONS
| Printing Method | 9 pins serial impact dot matrix | |
| Printing Speed | 4.4lines/sec | |
| Printing density | 210 dots(whole dots)/420 dots (half dots) | |
| Effective Printing Width | 42CPL(7X9)/35CPL(9X9); 40CPL(7X9)/33CPL(9X9) | |
| Detection Method | Paper out alarm | Support |
| Overheat protection | Support | |
| Black mark priting | Support | |
| Interface | USB, Serial and Ethernet | |
| Drawer port | 1 port, DC24V, 1A, 6 line RJ-11 socket | |
| Reliability | MCBF | 9,000,000 lines |
| Power Supply | DC power supply | Input DC 24V/2.5A |
| Ribbon | Ribon cassette | ERC-39 color: purple/ black/ red and black double ribbon |
| Printing Paper | Paper type | High quality 1 layer ordinary continuous paper or 2-3 layers copy paper |
| Paper width | 76±0.5 mm | |
| Paper Thickness | Single-layer paper thickness:0.06-0.085mm; Multi-layer paper thickness: 0.05-0.08mm, Total thickness <0.20mm. | |
| Paper roll diameter | 75 mm (Outside Diameter); 12 mm (Inside Diameter) | |
| Paper loading way | Not easy loading, with auto feeding function | |
| Paper cutting way | Manual tearing or auto cut | |
| Physical | Operating Temperature (°C) | 0 to 50 |
| Operating Humidity (%) | 10 to 80 (relative humidity) | |
| Storage Temperature (°C) | -20 to 60 | |
| Storage Humidity (%) | 10 to 90 (relative humidity) | |
| Dimension | Outer size(L x W x H) | 251x160x138 (mm) |
| Application | Restaurants, Department Stores, Kitchens, Convenience Stores, Specialty Retails, Super markets | |
