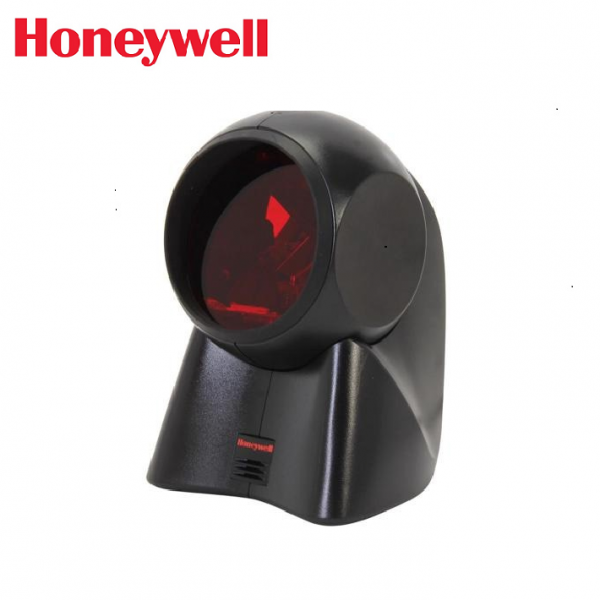

Honeywell MK7120 Orbit Barcode Scanner


Honeywell MK7120 Orbit is an An aggressive, Omnidirectional, Table Top Presentation Laser Barcode Scanner. It is Honeywell’s first Point-of Sale barcode scanner to utilize holographic technology to precisely focus the scanner’s laser and therefore increase performance and efficiency. ORBIT 7120 is perfect for retail applications where counter space is at a premium and its unique contoured design allows it to be picked up to scan large, bulky items.



Honeywell MK7120 ORBIT is the ideal Presentation Scanner for retail convenience liquor and specialty stores.In addition ORBIT MK7120’s unique contoured shape allows it to be picked up and used as a handheld when scanning large or bulky items.

The scanning head can be tilted vertically a full 30% for added flexibility when scanning various sized objects. ORBIT MK 7120 has a patented 20-line omnidirectional scan pattern that produces 1200 scan lines per second. These features increase the scanning through-put without increasing ORBIT MK 7120’s size.

The Orbit 7120 Omnidirectional Laser Scanner Kit from Honeywell includes a mounting plate and a 9.2′ USB cable. The Orbit is a hands-free omnidirecntional scanner with a patented 20-line scan pattern, an easy-to-find sweet spot, and a scan speed of 1,067 scans per second.



Input Voltage 5 VDC ± 0.25 V
Operating Power 900 mW (180 mA @ 5 V)
Standby Power 850 mW (170 mA @ 5 V)
System Interface USB, RS232, Keyboard wedge, IBM 468xx (RS485), light pen wand emulation



Honeywell MK7120 Specification


Scan Quality
Scan Pattern 5 fields of 4 parallel lines (omnidirectional)
Scan Speed 1,067 scans per second
Print Contrast 35% minimum reflectance difference
Pitch 60°
Skew 60°
Decoding Formats Reads standard 1D and GS1 DataBar symbologies
System Requirements Works on all Mac and PC operating systems
Depth of Field Narrow Width / Depth of Field
5.2 mil / 0.0 – 2.0″ (0.0 – 50.0 mm) 7.5 mil / 0.0 – 5.9″ (0.0 – 150.0 mm) 10.0 mil / 0.0 – 6.9″ (0.0 – 175.0 mm) 13.0 mil / 0.0 – 8.5″ (0.0 – 215.0 mm) 26.0 mil / 0.0 – 9.8″ (0.0 – 250.0 mm)


Storage Temperature -40° to 140°F (-40° to 60°C)
Operating Temperature 32° to 104°F (0° to 40°C)
Humidity 5% to 95% relative humidity, non-condensing
Durability Designed to withstand 4.0′ (1.2 m) drops
Sealing Sealed to resist airborne particulate contaminates
Lighting Conditions 4842 lux


Dimensions 4.1 x 4.0 x 5.9″ (105.0 x 102.0 x 150.0 mm)
Weight 14.1 oz (400.0 g)


Packaging Info


Package Weight




Box Dimensions (LxWxH) 9.8 x 7.7 x 3.4″
