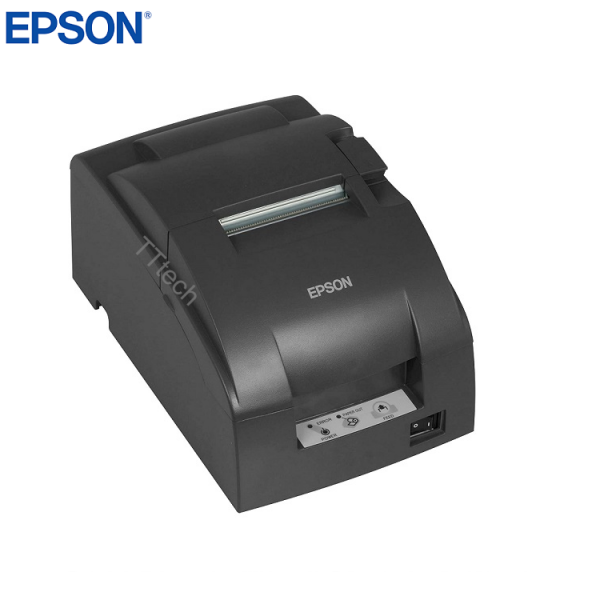

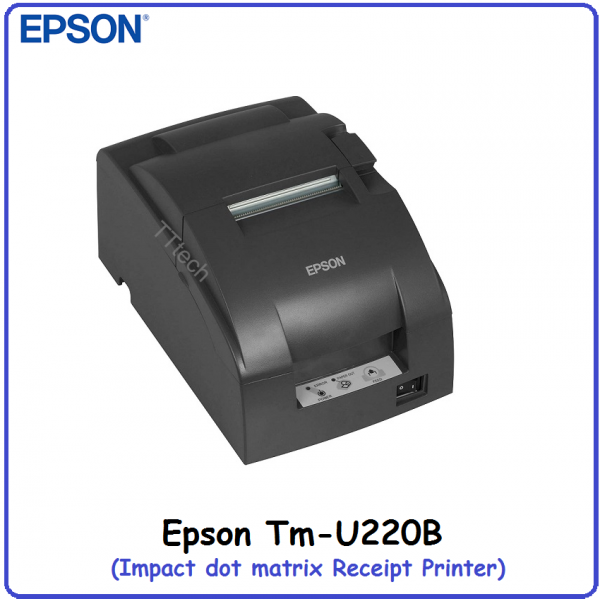

Epson TM-U220B Impact Dot matrix Receipt Printer

180,000.00

The Epson TM-U220b is a versatile, robust and high cost-performance impact dot matrix receipt printer which is exceptionally easy to use and provides high-efficiency throughput. This is commonly used as a kitchen printer and also ideal for use in restaurant, retail and hospitality industries.



It features drop-in paper load, selectable auto-cutter and clamshell covers for easy access and maintenance, the TM-U220B is very reliable and supports double colour printing.

Categories: ,

Description

The Epson´s TM-U220B kitchen and bar printer is compact, reliable, fast, and offers all the easy to use features important for the restaurant, retail and hospitality industries.

It features drop-in paper load, selectable auto-cutter and clamshell covers for easy access and maintenance, the tm-u220b is very reliable and supports double colour printing. It is wall-mountable and this frees up valuable counter space in kitchens and other tight locations.



 TECHNICAL SPECIFICATIONS

PRINT METHOD 9-pin, serial impact dot matrix
PRINT FONT 7 x 9 / 9 x 9
COLUMN CAPACITY 40 or 42 columns / 33 or 35 columns
CHARACTER SIZE 1.2(W) x 3.1 (H) mm / 1.6 (W) x 3.1 (H) mm
CHARACTER SET 95 Alphanumeric characters, 37 International characters, 128 x 12 Graphic characters
Traditional / Simplified Chinese, Thai, Japanese, Korean
PRINT SPEED Approx. 4.7 LPS (40 columns, 16CPI) / Approx. 6 LPS (30 columns, 16 CPI)
DATA BUFFER 4 KB or 40 bytes
INTERFACE Ethernet
PAPER DIMENSIONS 57.5 + 0.5, 69.5 + 0.5, 76mm 0.5mm x dia. 83.0mm (roll)
PAPER THICKNESS 0.06 to 0.085mm
COPY CAPABILITY One original and one copy
INKED RIBBON ERC-38 (black, black and red)
RIBBON LIFE Black: 3 x 106 characters
B/R: 15 x 105 characters (black) 75 x 104 characters (red)
POWER SUPPLY AC adapter (included)
POWER CONSUMPTION Approx. 31 W average
D.K.D. FUNCTION 2 drivers
RELIABILITY
MTBF 18 x 104 hours
MCBF 18 x 106 lines
EMI STANDARDS VCCI class A, FCC class A, CE marking, AS / NZS 3548 class B
SAFETY STANDARDS UL, CSA, TV (EN60950)
PRODUCT OPTIONS
FACTORY OPTION Paper near-end sensor
PS-180 Power Supply
CASETTE (Purple, Black, Black and Red)
Wall Hanging Bracket
OVERALL DIMENSIONS A Type: 160mm (W) x 286mm (D) x 157.5mm (H) (Approx. 2.7Kg)
B Type: 160mm (W) x 248mm (D) x 138.5mm (H) (Approx. 2.5Kg)
C Type: 160mm (W) x 248mm (D) x 138.5mm (H) (Approx. 2.3Kg)
