BP-Scan BPX8800

55,000.00

  • Two charge ways:put the scanner on the base to charge and use micro USB cable to charge(like android smart phone charge cable)
  • Wireless communication power can be set (high:16dBm;middle:8dBm;low:0dBm),sound of scanner can be set(high,middle,low and silence).Battery power can be showed by reading a function code(eg:88% remaining power,like our smart phone)
  • With the function of adding prefix and suffix,You can use it in dusty and wet environments and it can survive a 6 foot/1.8 m drop.



Upgraded features:
Flicker/auto/continuous scanning mode are optional, is more stable than other uppliers
The scanner supports FEDEX/UPS/DHL/TNT tracking number
32 bit new digit laser decoding technology with faster scanning speed
Add Prefix and Suffix feature, you can add characters in front and after each scan
Function key F1 to F12, HOME and TAB

Specification: Wireless Transmitting Distance (without barrier) :300 – 400m
Optical Source: 650nm Visible red light diode
Image Resolution: 3mil
Minimum Contrast : 30%

Barcode Types
UPC/EAN/JAN,UPC/EAN with supplementals, UCC/EAN128, Code39, MSI, Code11, Code39 Full ASCll, Code39 Trioptic, Code128, Code128 Full ASCll Codabar, Code93, Discrete 2 of 5 IATA, RSSvanrians, Codabar, Chinese 2 of 5, Interleaved 2/5, Interleaved 2 of 5, International general dimensional barcodes.

Decoding Speed: 280times/s
Barcode Sensitivity
Tilt ±65° Rotate ±42° Deflection ±60°
Data Interface Port: RJ-45
Mechanical and Electric Performance
Size(Length x Width x Height): 7 x 5.5 x 4.5 in
Weight (except cable): 320g
Indicator :Siren and LED light
Max.Power: 520mw
Working Voltage: DC5V
Current Max Current: 104ma
Working Current: 77ma
Stand-by Current: 56ma
Sleeping Current: 3ua
Charging Current:450ma
Environmental Parameter
Storage Temperature:-40°C ~ 60°C
Working Temperature :0°C ~ 50°C
Relative Humidity: 0 ~ 95%
Height Range:1.5m
IP Rating: IP52

Package:

1 x 433Mhz Wireless Barcode Scanner
1 x Charging Cradle
1 x USB Data Cable
1 x User Manual













Categories: ,

Description

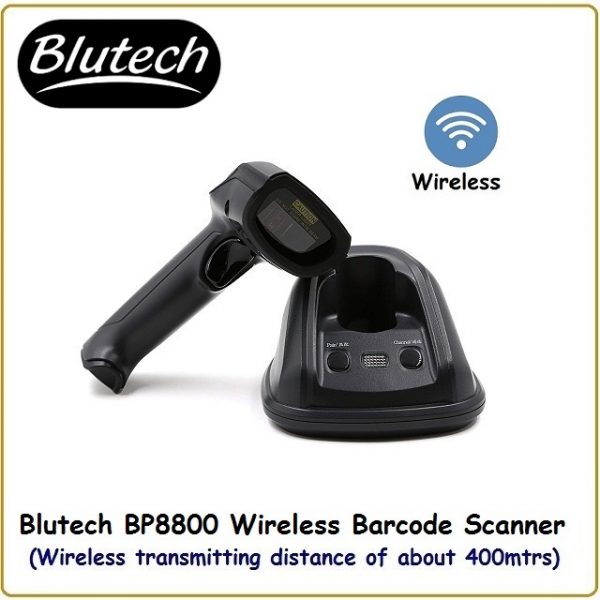

BP-Scan BPX8800 is a wireless barcode scanner with about 300 to 400 wireless transmitting distance and it comes with a cradle

  • new design four pairing mode: one to one, one plus storage, one to more, more-to-more, support one-click pairing, meet your multi application scenes.Compatible with Windows/Mac OS/Linux.
  • 3 kinds of data upload mode:Instant transfer mode.auto storing mode(default) and Manual transfer mode.16Mb internal memory supports up to 55,000 barcodes in inventory mode when not connected, you can upload the data to your device anytime when you need.280times/second scanning speed.
