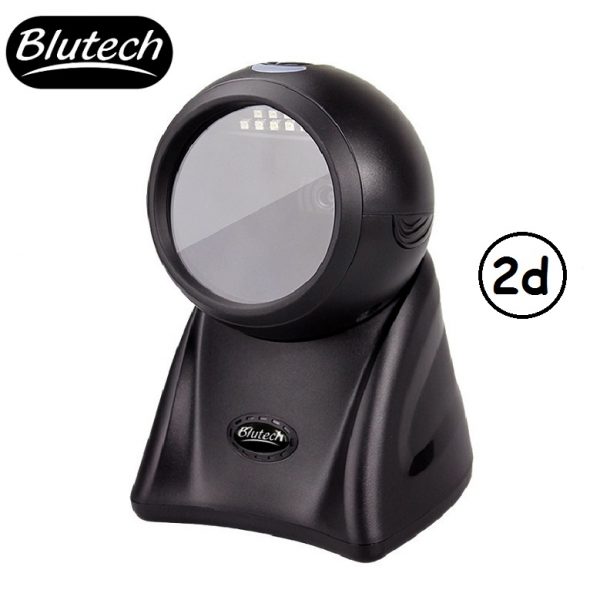

BP-SCAN BP2082A Barcode Scanner (1D & 2D)

42,000.00 40,000.00

The BP-Scan BP2082A is a 1D & 2D Orbit, Table Top and omni-directional Barcode Scanner.



The omni-directional features allows the scanners to produce a pattern of beams in varying orientations which allow them to read barcodes at different angles


The Orbit BP2082 is perfect for retail applications where counter space is at a premium and its unique contoured design allows it to be picked up to scan large and bulky items



Technical Parameters
Size 15.5cm/10.0cm/10.9cm ?Frame Included?
Weight 256g / 315g (Frame Included)
Voltage 5.0 VDC±10%
Rated Current 230 mA
Power 1 Watt
Frame Fixed-Mount
Color Black
Light Source Visible Laser Diode 650 nm
Scanning Angle Omni-directional ±50°/±50°/0-360° (Left and right, front and back, rotation)
PrintingContrastRatio The lowest reflectivity difference is 25%
Scanning Mode 20ScanLine Omni-directional Pattern;  5 Directions?4 Lines/Direction
Scanning Speed Omni-directional 1500 times /s
Depth Of Field 0mm-250mm @ 13 mil (100% UPC/EAN)
Rated Operating Range 5 mil : (38%) 1.0 – 5.0 cm7.8 mil : (60%) 0 – 18.0 cm

10.4 mil : (80%) 0 – 22.0 cm

13 mil : (100%) 10 – 25.0 cm

Lowest Resolution 5 mil
Barcode Types UPC/EAN/JAN?UCC/EAN 128?Code 128?Code 39?Code 39 Trioptic?China postal Service Code 2 of 5 code?Interleaved 2 of 5?Industrial 2 of 5?Matrix 2 of 5?Code 93?Code 11?Codabar?MSI etc .Universal one -dimensional bar code
Interfaces USB ?RS 232?Keyboard Emulation
Operating temperature 0? to 40?
Storage temperature -40? to 70?
Operating humidity 5 to 95% (Non-condensing)
Shock Resistance Pass 1.2m free fall test
Light Resistance Accept Normal Indoor Lighting And Outdoor Natural Light (Directly Sunlight).Fluorescent?Incandescent?Mercury Vapor And Sodium Vapor Lights: 450 Ft Candles (4,844 Lux)

Sunlight: 8000 Ft Candles (86,111 Lux)

Laser Level CDRH Ila Class Laser Product
Laser Level IEC 60825 Class 1 Laser Product
