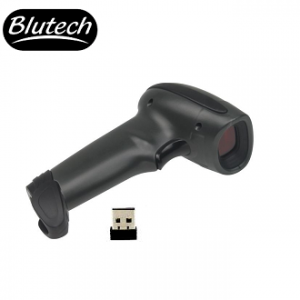

Blutech BP6802 Barcode Scanner


Blutech BP6802 Barcode Scanner is a laser barcode scanner that is handheld and with automatic barcode scanning.


Antiknock design: withstand 1.5M drops

Error rate less than 1/5million

Supporting the USB interface.

Service life or button reaches up to 50 million times

Support multiple languages (English, French, German)

Full independent intellectual property rights


Performance Parameter

Light Source:                        650nm Visible red light diode

Scanning Distance:              0~280mm @ UPC/EAN 0.33mm PCS=90%

Scan Line:                            Single Line

Scan Speed:                        300 scan/second

Minimum Print Contrast:      ? 30% (UPC/EAN 100%)

Barcode Sensitivity:            Pitch    ±65°

Roll:              ±30°

Skew:            ±55°

Barcode Types:                  UPC/EAN/JAN,UPC-A & UPC-E,EAN-8 & EAN-13, JAN-8 &JAN-13, ISBN/ISSN, Code 39 (with full ASCII),

Codabar (NW7), Code 128 & EAN 128,Code 93,Interleaved 2 of 5 (ITF),Addendum 2 of 5, IATA Code, MSI/Plessy,

China Postal Code,Code 32 (Italian Pharmacode),


Mechanical and Electric Performance

SIZE (Length x Width x Height:    160mm*67mm*94mm

Weight (without cable):                 173g

Indicator:                                        Beeper and LED Light

Communication interface:              USB

Input voltage:                                 5VDC±10%

Working Current:                           85mA

Environmental Parameter

Storage Temperature:                    -40°C ~ 60°C

Working Temperature:                    0°C ~ 50°C

Relative Humidity:                         5% ~ 95%

Drop Resistance:                          1.5M

IP Rating:                                      IP52

EMC:                                             CE EN55022 B, FCC Part 15 Class B, VCCI, BSMI

Laser Safety:                                CDRH Class IIa, IEC 60825-1 Class 1

Certificates:                                 CE,RoHS,EMC,LVISO9001:2008,
