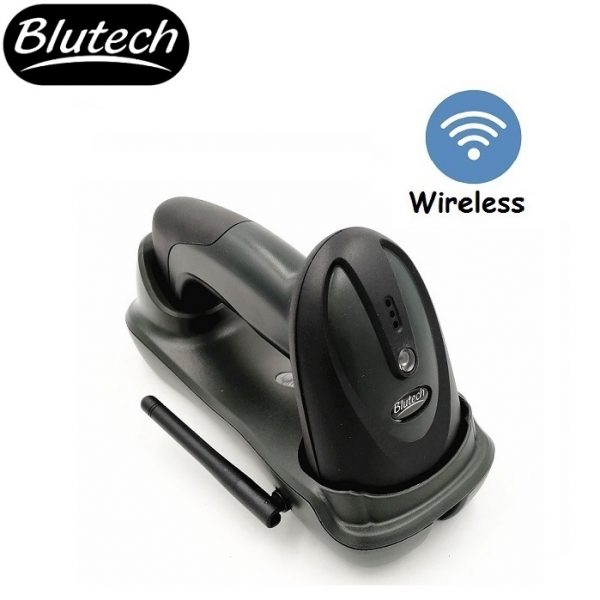

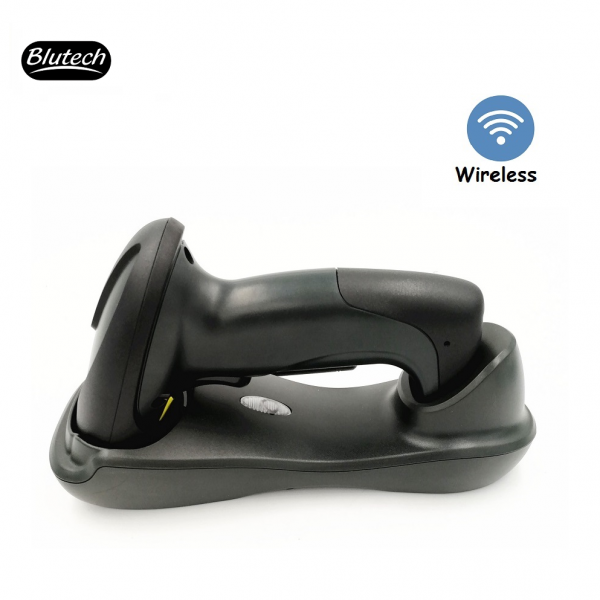

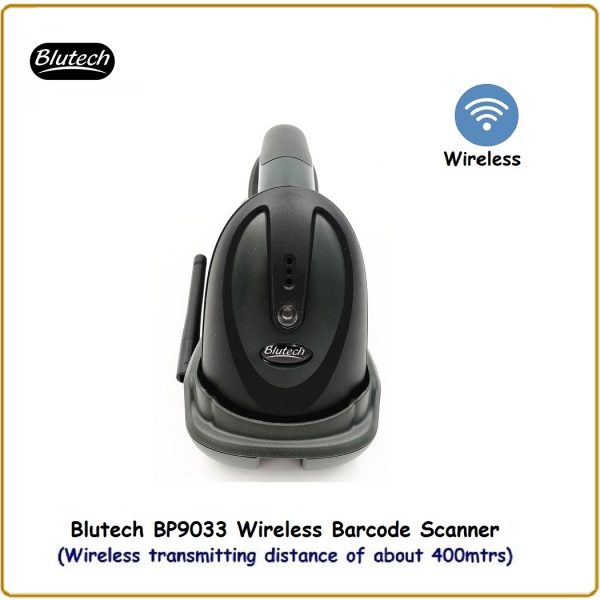

Blutech BP9033 Wireless Barcode Scanner (433Mhz)


The Blutech BP9033 is a wireless barcode scanner that communicates by 433Mhz radio frequency within 400 meters outdoor communication distance (without any obstacle).

This laser scanner delivers quality barcode scanning and offer aggressive scanning of all standard 1D bar codes.


The Blutech BP9033 Wireless Barcode Scanner provides excellent performance for a wide variety of applications, such as logistics, warehousing, retail, government, distribution centers, manufacturing, field service, direct to store delivery, healthcare, laboratory, etc.

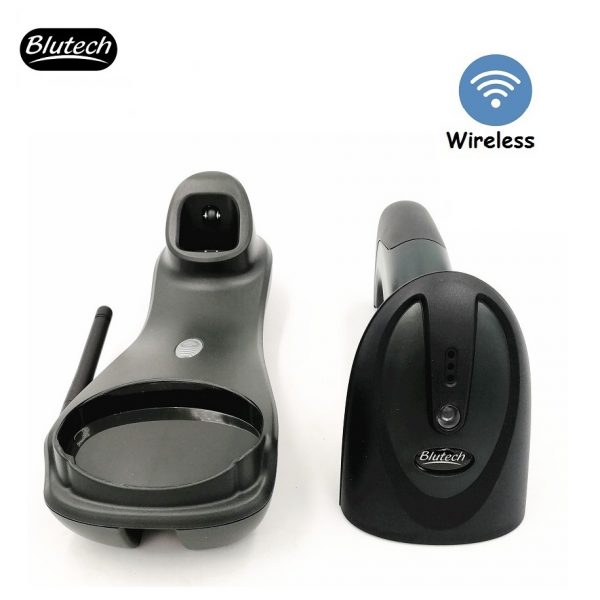

The Blutech BP9033 Wireless Barcode Scanner is an ideal scanner for high productivity by wireless fast data transfer and it comes with a cradle for charging and receiving data.

The ease of connectivity for up 400 meters wireless data transfer and common interfaces are integrated to ensure fast and easy connection to your host or PC.


It has four pairing mode: one to one, one plus storage, one to more and more-to-more. It supports one-click pairing, and it meets multi-application scenes and its compatible with Windows/Mac OS/Linux.

It has three kinds of data upload mode; Instant transfer mode, Auto storing mode(default) and Manual transfer mode. It has 16Mb internal memory that supports up to 55,000 barcodes in inventory mode when not connected.


Performance Parameter
Wireless Transmitting Distance (without barrier) 300 – 400m
Light Source 650nm Visible red light diode
Image Resolution ?4mil
Minimum Print Contrast ? 30%



Barcode Types


UPC/EAN/JAN,UPC/EAN with supplementals? UCC/EAN128,Code39,MSI,Code11,Code39 Full ASCll,

Code39 Trioptic, Code128,Code128  Full ASCll Codabar,Code93,   Discrete 2 of 5 IATA,RSSvanrians,Codabar,chinese 2 of 5,Interleaved 2/5, Interleaved 2 of 5, International general dimensional barcodes ?

Decoding Speed 200times/s
Barcode Sensitivity Pitch ±65°
Roll ±42°
Skew ±60°
Data Interface Port RJ-45
Mechanical and Electric Performance
Size(Length x Width x Height) 210×84×117.5 mm
Weight (without cable) 321g
Indicator beeper and LED light
Battery Capacity 600mah
Maximum Power 520mw
Working Voltage DC5V


Maximum Current 104ma
Working Current 77ma
Stand-by Current 56ma
Sleeping Current ? 3ua
Charging Current 450ma
Accessory List
Data line USB data line(1.8m)
Operation Manual 1 Piece
Charging Cradle 1 Piece
Environmental Parameter
Storage Temperature -40°C ~ 60°C
Working Temperature 0°C ~ 50°C
Relative Humidity 0 ~ 95%
Drop Resistance 1.5m
IP Rating IP52
