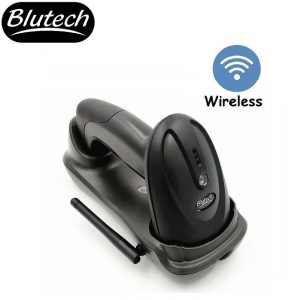

Blutech BP3802 2D Barcode Scanner

21,000.00

The Blutech BP3802 is a 1d & 2d barcode scanner.



It has bright and sharp laser beam that reads thin barcodes accurately and correctly.

Compact anti-shock & drop-resistance design, durable & high quality.



Category:

Description

The Blutech BP3802 2D Barcode Scanner is widely used in all walks of life, such as supermarket, bank, warehouse, logistics & express, etc.



Performance Parameter
Image (pixels) 640 pixels(H)*480 pixels(v)
Light Source Aiming:617 nm LED ; illumination:6500K LED
Scanning Distance 40-200mm @ UPC/EAN 13mil PCS=90%?20-250mm @ QR 20mil PCS=100
Image Resolution ? 5mil
Minimum Print Contrast ? 25% (UPC/EAN 100%)
Barcode Sensitivity Pitch ±65°
Roll ±30°
Skew ±55°










Barcode Types

1D?



UPC/EAN/JAN,UPC-A & UPC-E,EAN-8 & EAN-13, JAN-8 &JAN-13,

ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN 128,Code 93,Interleaved 2 of 5 (ITF),Addendum 2 of 5, IATA Code,MSI/Plessy, China Postal Code,Code 32 (Italian Pharmacode),RSS 14,RSS Limited, RSS Expanded



2D?



QR Code, Data Matrix, PDF417 etc.

Mechanical and Electric Performance
SIZE(Length x Width x Height 160mm*67mm*94mm
Weight (without cable) 173g
Indicator Beeper and LED Light
Communication interface HID USB?USB Virtual COM?RS-232
Input voltage 5VDC±10%
Working Current 300mA
Environmental Parameter
Storage Temperature -40°C ~ 60°C
Working Temperature 0°C ~ 50°C
Relative Humidity 5% ~ 95%
Drop Resistance 5M
IP Rating IP52
Certificates
CE,RoHS,EMC,LVD?ISO9001:2008?ISO14001:2004
